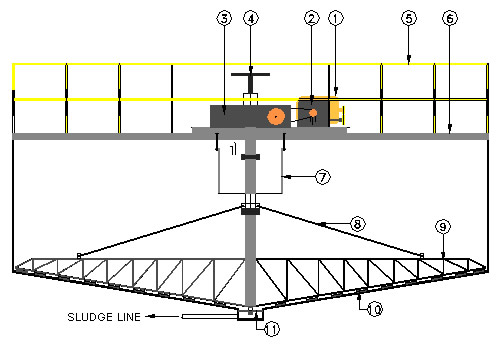

Clarifier |
|
|
|
CLARIFIER MECHANISM |
|
|
|
SALIENT FEATURES : |
|
|
• Unique lifting mechanism to adjust to civil construction
mismatches of tank slope & much more.
• El-econ / Radic on worm type gearbox with service factor > 2 imparting
long life to the equipment.
• ABB / Compton Motor for unmatched performance.
• Sand Blasted & Best quality 3 coat Epoxy Spray Painted Submerged parts
for corrosion resistance.
• Full Length Enamel Spray Painted Checkered Plate Platform with Handrail.
• Worm Reduction Drive with unmatched 3 Years Warranty.
• Material Test Certificate for Customer Satisfaction & Quality Control.
|
|
Top |
|

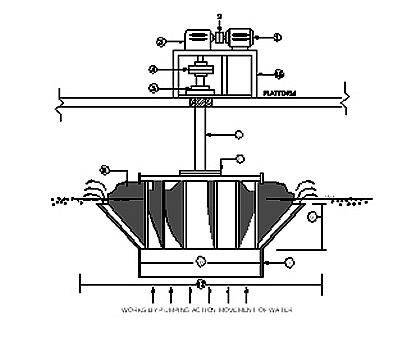

Surface Aerator : |
|
|
|
|
|
|
SALIENT FEATURES : |
|
|
• Internal Blade Turbine Type impeller working on pumping
action imparting excellent oxygen transfer of 1.6-2.0 Kg Oxygen/HP/Hour.
• Bearing Housing provided to ease maintenance & Increase life of gearbox
as total load of impeller taken by Bearing Housing.
• El econ / Radicon worm type gearbox with service factor > 2 imparting
long life to the equipment.
• ABB / Compton Motor for unmatched performance.
• Sand Blasted & Best quality 3 coat Epoxy Spray Painted Submerged parts
for corrosion resistance.
• Dynamically Balanced.
• Material Test Certificate for Customer Satisfaction & Quality Control.
|
|
Top |
|

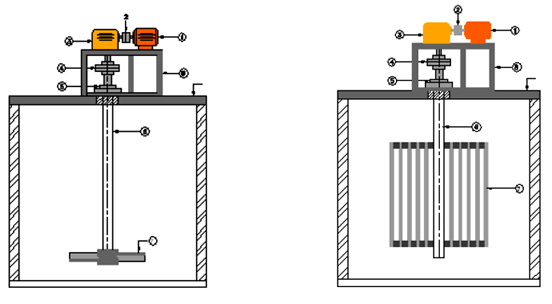

Agitator & Flocculator |
|
|
|
|
|
|
SALIENT FEATURES : |
|
|
• Agitator types such as turbine type, Axial Angle Blade
type, Dish type, Peddle type made by us.
• Flocculate types such as Pitched puddle, Horizontal peddle, Disc type etc.
made by us.
•Bearing Housing provided to ease maintenance & Increase life of gearbox as
total load of impeller taken by Bearing Housing.
• El econ / Rad icon worm type gearbox with service factor > 2 imparting
long life to the equipment.
• ABB / Compton Motor for unmatched performance.
• Sand Blasted & Best quality 3 coat Epoxy Spray Painted Submerged parts
for corrosion resistance.
• Dynamically Balanced.
• Material Test Certificate for Customer Satisfaction & Quality Control.
|
|
Top |
|

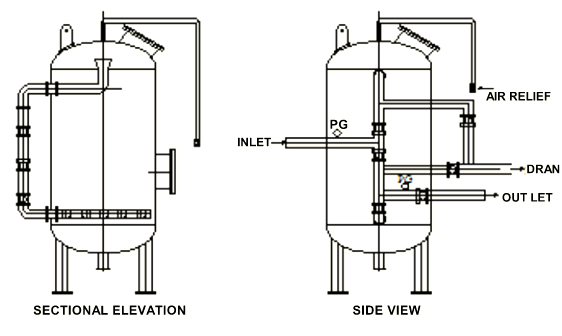

Pressure Sand, Activated Carbon & Dual Media Filters |
|
|
|
|
|
|
|
|
SALIENT FEATURES : |
|
|
• We supply Pressure Sand Filters, Activated Charcoal Filters
& Dual media Filters of capacity 0.5m3/hr to 75m3/hr.
• Flow from Top to Bottom.
• High Quality Glycerin Filled Pressure Gauges Fitted at Inlet & Outlet.
• Epoxy Painted from Inside.
|
|
Top |
|
Other Equipments. |
|
|
|
|
• Horizontal Centrifugal Pumps, Clear Water application
Pumps, Submersible Pumps etc.
• Twin Lobe Roots Blowers.
• Reverse Osmosis Plants.
• De-Mineralization Plants.
• Water Softening Plants.
• Mix Bed Plants.
• Diffusers for Aeration Tanks.
|
|
